Safe and accurate measurement with the Schischek ExCos-D transmitter

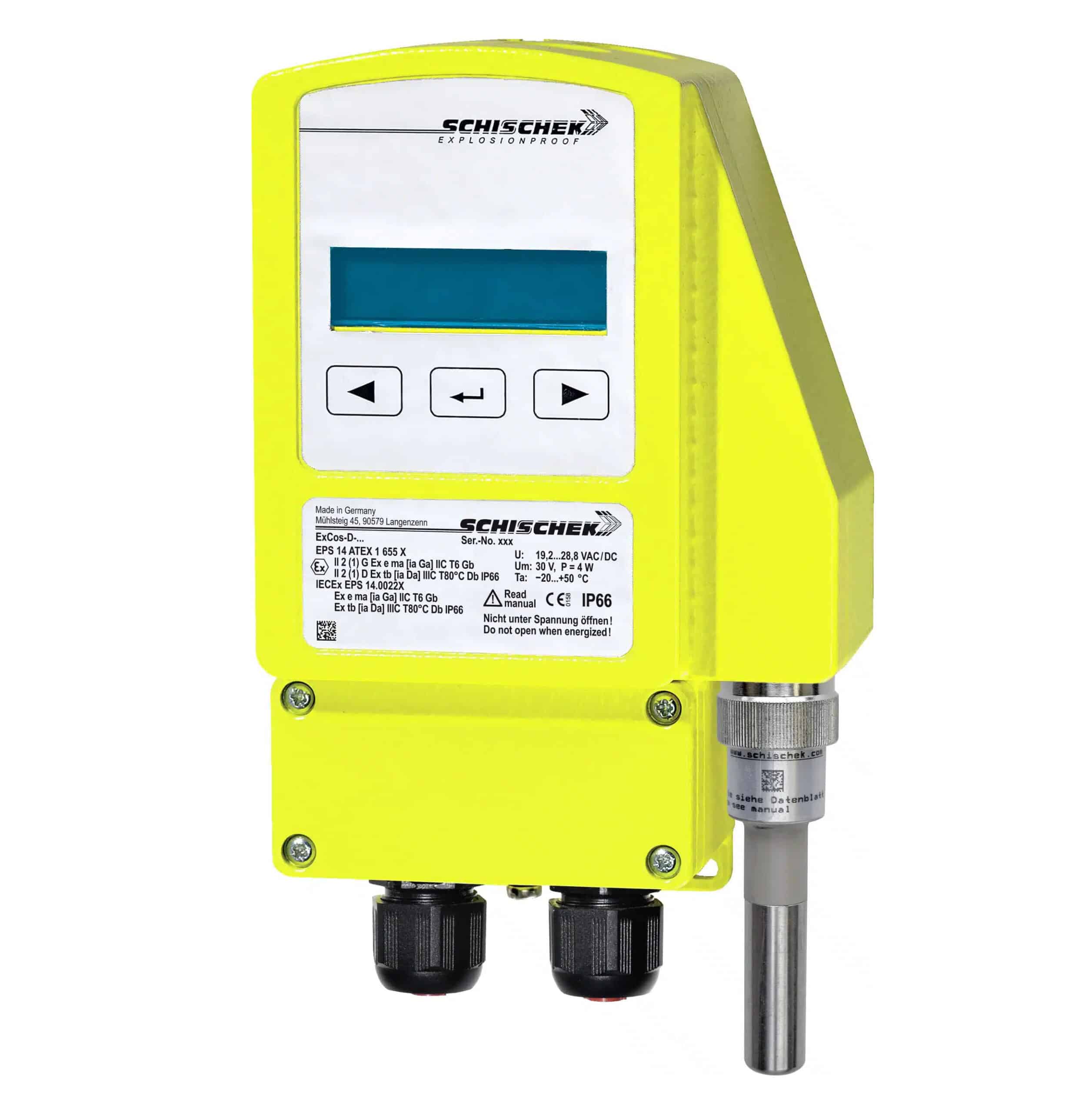

The Schischek ExCos-D explosion-proof analog transmitter is specifically designed for the safe and accurate measurement of temperature and/or humidity in hazardous areas within ATEX zones 1, 2, 21 and 22. This versatile transmitter operates in combination with Schischek ExPro-C sensors, providing optimal performance for applications in HVAC systems, pharmaceutical facilities, chemical industries, and offshore/onshore environments.
Thanks to its universal power supply (24 VAC/DC) and selectable analog output signals (0…10 V / (0)4…20 mA), you can flexibly integrate this transmitter into your installation. The integrated Ex-e terminal box eliminates the need for additional Ex-i modules and intrinsically safe wiring. Additionally, you can easily set all parameters on-site, without additional tools or measuring equipment. Furthermore, the illuminated and switchable display ensures optimal readability of real-time values.
Why choose the Schischek ExCos-D?
- ATEX certified (2014/34/EU) for safe use in explosive atmospheres
- Compatible with ExPro-C sensors for room or duct mounting
- Flexible analog output, adjustable on-site: 0…10 V / (0)4…20 mA
- No intrinsically safe wiring required, simplifying and accelerating installation
- Integrated illuminated display, easy to operate and can be switched off
- IP66 protection class, resistant to harsh environmental conditions
- Robust aluminum housing, optionally available in stainless steel or offshore coating
- Compact and space-saving, ideal for limited installation space
- All parameters adjustable on-site without additional tools or measuring equipment
- Optionally available in stainless steel or with offshore/marine coating
Technical specifications
| Property | Specification |
|---|---|
| Product type | Explosion-proof temperature and/or humidity transmitter |
| Suitable for zones | ATEX Zone 1, 2 (gas) and Zone 21, 22 (dust) |
| Power supply | Universal AC/DC 24 V (±20%), 50/60 Hz |
| Analog output signals | Selectable 0…10 V / (0)4…20 mA |
| Integrated display | 2×16 characters, illuminated and switchable |
| Settings | Adjustable on-site without extra tools |
| Housing | Robust aluminum, optional stainless steel or offshore coating |
| Protection class | IP66 |
| Ambient temperature | -20°C to +50°C |
| Certifications | ATEX (2014/34/EU), IECEx, CE, EAC |
| Sensor connection | Connector for ExPro-C sensors (room or duct) |
| Housing dimensions (L×W×H) | Aluminum: 180×107×66 mm, Stainless steel: 195×127×70 mm |
| Weight | Aluminum ~950 grams, Stainless steel ~2.5 kg |
Quick and easy installation
The Schischek ExCos-D transmitter can be quickly installed using the integrated Ex-e terminal box, without additional intrinsically safe modules or complex wiring. This saves valuable installation time. All parameters are easily set via the clear display and user-friendly buttons.
Frequently Asked Questions (FAQ)
Can I install this transmitter outdoors?
Yes, thanks to the robust IP66 housing, this transmitter is fully suitable for outdoor use, even in harsh conditions.
Is intrinsically safe wiring required?
No, additional Ex-i modules and intrinsically safe wiring are not required. This significantly simplifies your installation process.
Which sensors can I connect?
You can only connect Schischek ExPro-C sensors for temperature and/or humidity measurements. These sensors are specifically designed for safe and accurate measurements in ATEX environments.
| Type | Description | Datasheet ExCos-D | Datasheet ExPro-C sensor | Certificate | EC Conformity |
| ExCos-D | EX temperature and humidity transmitter for ExPro-C sensors |  | | | |
