Description

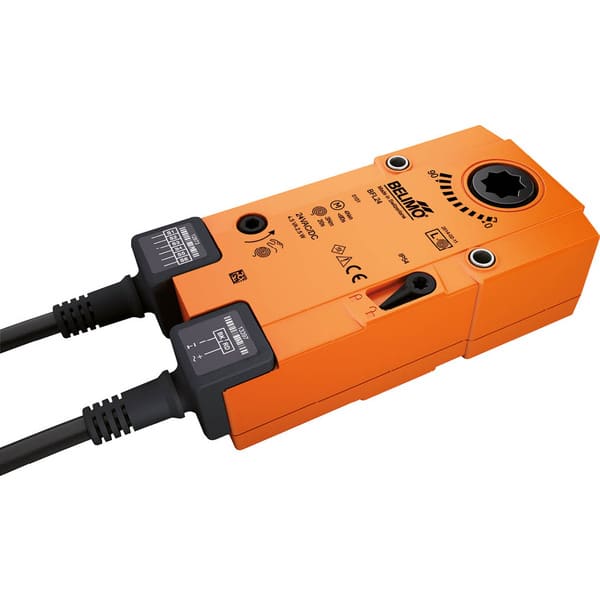

Damper actuator, 4 Nm, AC/DC 24 V, open/close, 60 s, 2 x EPU, IP54, Cable with connector plug
Article number: BFL24-ST
Damper actuator, 4 Nm, AC/DC 24 V, open/close, 60 s, 2 x EPU, IP54, Cable with connector plug
Damper actuator, 4 Nm, AC/DC 24 V, open/close, 60 s, 2 x EPU, IP54, Cable with connector plug
| Draaihoek | 95 |
|---|---|
| Control | Open-dicht |
| Beschermingsklasse | IP54, IP-bescherming in alle montagestanden |
| Electrical connection | Cable with connector plug |
| Spanning AC/DC | AC/DC 24 V |
| Veiligheidsfunctie (bedrijfsveilig) | Safety function |
| Control | Open-close |
| Protection class | IP54 |
| Torque | 4 Nm |
| Supply voltage AC/DC | AC/DC 24V |
| Handsteel | With stop lever |
| Looptijd (motor) | <60 s / 90° |
| Opgenomen vermogen (houdstand) | 0.7 W |
| Opgenomen vermogen (lopend) | 2.5 W |
| Duration (safety function) | 20 s |
| Hulpschakelaars | 2 x EPU |
| Asverbinding | Mold closure 12×12 mm, continuous hollow shaft |
