Description

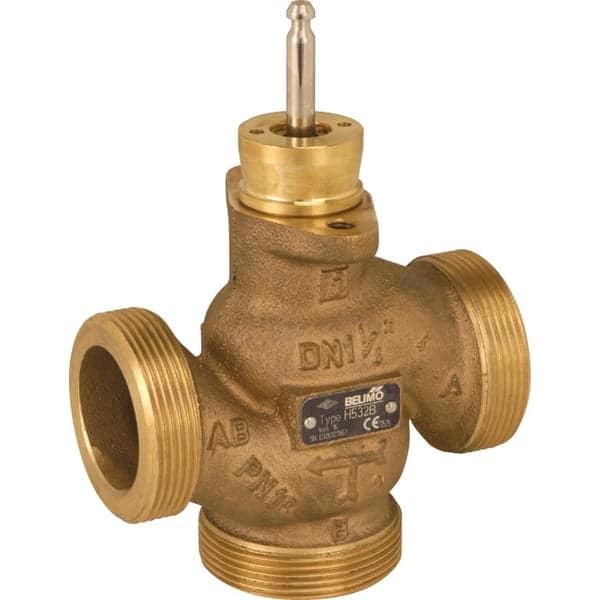

Control valve, 3-way, DN40, external thread, G 2 1/4″, PN16, ps 1600 kPa, kvs 25 m³/h, medium temperature -10…120°C
Control valve, 3-way, DN40, external thread, G 2 1/4″, PN16, ps 1600 kPa, kvs 25 m³/h, medium temperature -10…120°C
Control valve, 3-way, DN40, external thread, G 2 1/4″, PN16, ps 1600 kPa, kvs 25 m³/h, medium temperature -10…120°C
| Drukonafhankelijk | No |
|---|---|
| kvs | 25 m³/h |
| Medium | Cold and hot water, water with glycol up to max. 50% vol. |
| Pipe connection | External thread |
| PN | 16 |
| Uitvoering | 3-weg |
| Slag | 15 mm |
| Number of ports | 3-way |
| DN size | DN40 |
| PN pressure rating | PN16 |
| Kvs value | 25 |
| Pipe connection | External thread |
