Description
Precise linear control of air dampers

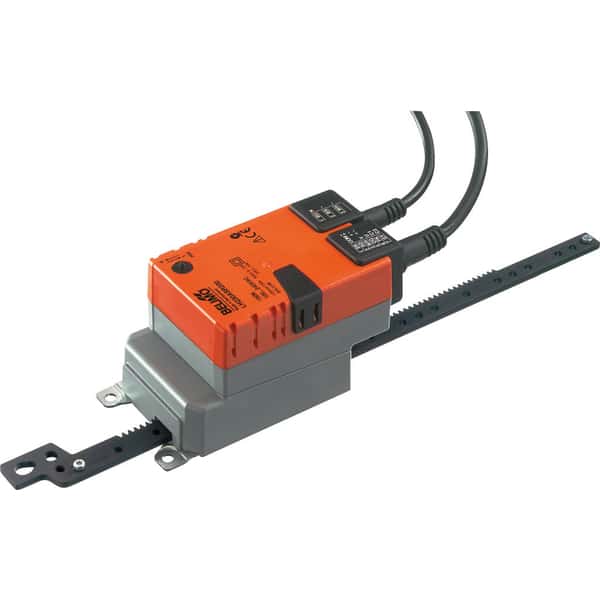

The Belimo LH230ASR200 linear air damper actuator is specially designed for positioning linearly operated air dampers in ventilation and air conditioning systems. The linear stroke converts the control signal into a controlled damper movement and thus supports stable air regulation. The actuating force of 150 N supports reliable movement of the linearly operated air damper.
This actuator operates an air damper via a linear stroke instead of a quarter-turn movement. Actuating force, stroke length, running time and management determine which execution fits the damper design.
Key features & benefits
- 150 N – Reliable linear movement of the connected air damper
- 2…10 V – Dedicated measuring execution for connection to the control system
- IP54 – Suitable protection for use in technical installations
- Linear damper movement: suitable for air dampers with a linear operating mechanism.
- Matched actuating force: selected based on damper size and mechanical resistance.
Technical specifications LH230ASR200
| Property | Specification |
|---|---|
| Type | linear air damper actuator |
| Actuating force | 150 N |
| Supply voltage / signal | AC 100…240 V |
| Output signal | 2…10 V |
| Running time | 150 s |
| Feature | Slag 200 mm |
| Protection class | IP54 |
Simple integration into the system
- Installation: The actuator is coupled to the matching damper or damper shaft and connected according to the relevant Belimo product documentation.
- Application: The actuator is connected to the air damper with a suitable mechanical coupling. Actuating force, stroke height, supply voltage and control signal determine the correct execution.
Frequently asked questions (FAQ)
- What is the LH230ASR200 used for?
This linear actuator is used for a suitable air damper in a ventilation or air conditioning system.
- What is the main advantage of this execution?
The linear movement makes a controlled and reproducible air damper position possible.
- Which execution is suitable for my installation?
Betec Controls is happy to help compare the dimensions, connection, management and other product specifications.
