Description
Introduction

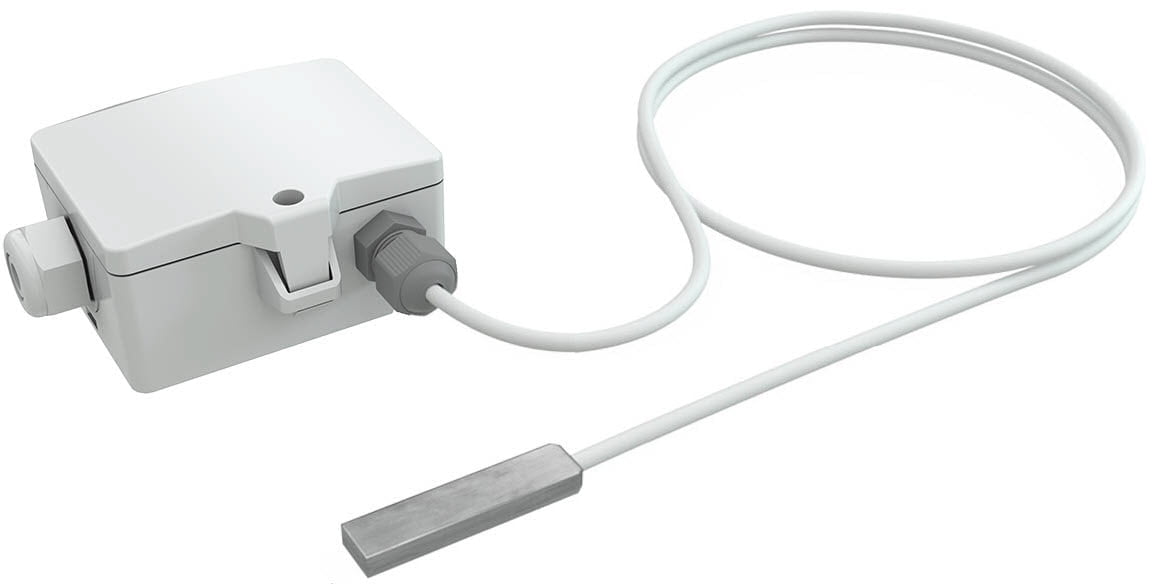

What temperature do you need to reliably read from a surface and make available to your building management system? The Thermokon OF14+ temperature Sensor Modbus is a cable probe for surface temperature measurement with RS485 Modbus communication. The Sensor combines a compact aluminum Sensor sleeve with a robust USE-M housing. In addition, the device supports various configuration options, making it practical for use in control engineering installations.
Key features
- Measures temperature on a surface with an aluminum Sensor sleeve.
- Provides data via Modbus over an RS485 Interface.
- Has protection rating IP65.
- Operates within a temperature range of -35 to +70 °C.
- Has a 1 meter connecting cable and a self-adhesive Sensor surface for surface mounting.
- Supports configuration via USEapp, uConfig, BUS, jumpers and DIP switches.
- Comes with mounting base, mounting set, screws and accessories.
Applications
This Thermokon OF14+ temperature Sensor Modbus is suitable for situations in which the temperature of a surface must be made centrally available. Think of installations in which a surface Sensor forms part of an HVAC control or building management system. The cable probe can be used on a surface that you want to monitor locally and whose measured value must be read out via Modbus.
The included mounting set supports practical installation. In addition, the 1 meter cable makes the Sensor usable when the housing is placed some distance from the measuring point. For other measurement solutions, you can also view the category surface sensors.
Technical data
| Manufacturer | Thermokon |
| Article number | 793452 |
| Product name | Thermokon OF14+ temp RS485 Modbus L1000 | Surface sensors |
| Product type | surface sensors |
| Product family | OF14+ |
| Measured value | temperature |
| Interface | Modbus |
| Protection rating | IP65 |
| Application/type | Cable probe, Surface Sensor |
| Configuration | USEapp, uConfig, BUS, jumpers, DIP switches |
| Data transmission | RTU, half duplex, baud rate 9,600, 19,200, 38,400 or 57,600, parity: none (2 stop bits), even or odd (1 stop bit) |
| Operating range temperature (°C) | -35..+70 |
| Operating ranges Temperature (°C) | -35..+70 |
| Temperature accuracy | ±0.5 K (typ. at 21 °C), in standard measuring range, depending on the length of the connecting cable, offset setting via app or uConfig |
| Power supply | 15..35 V = SELV, 19..29 V ~ SELV |
| Power consumption | typ. 2.5 W (24 V =), 4.3 VA (24 V ~) |
| Material in contact with Medium | Sensor sleeve, aluminum, 35x10x6 mm |
| Installation length (mm) | 35 |
| Housing | USE-M, impact-resistant and shatterproof housing with hinged cover, PC |
| Color | pure white |
| Connection | removable cable gland M25 with four-way cable entry for max. Ø=7 mm, removable plug-in terminal, max. 2.5 mm², BUS max. 1.5 mm² |
| Connecting cable | PVC, 0.25 mm², 2-core, white |
| Connecting cable length (m) | 1 |
| Mounting | surface mounting by means of self-adhesive Sensor surface |
| Scope of delivery | incl. mounting base housing USE-M pure white, incl. mounting set (screws and accessories) |
| Package length (mm) | 152 |
| Package width (mm) | 128 |
| Package height (mm) | 65 |
| Packaging | folding carton |
| Device length (mm) | 85 |
| Device width (mm) | 84 |
| Device height (mm) | 45 |
| Weight (g) | 125 |
Frequently asked questions
What does the Thermokon OF14+ measure?
The Sensor measures temperature on a surface. The product type is cable probe and surface Sensor.
How does this surface Sensor communicate?
The measured value is transmitted via Modbus with RTU, half duplex and RS485 communication.
How is the Sensor mounted?
Mounting is done on the surface using a self-adhesive Sensor surface. The delivery also includes a mounting base and mounting set.
Within which range does the device operate?
The specified operating temperature range is -35 to +70 °C.
Can the Sensor be configured?
Yes. The source table lists USEapp, uConfig, BUS, jumpers and DIP switches as configuration options.
