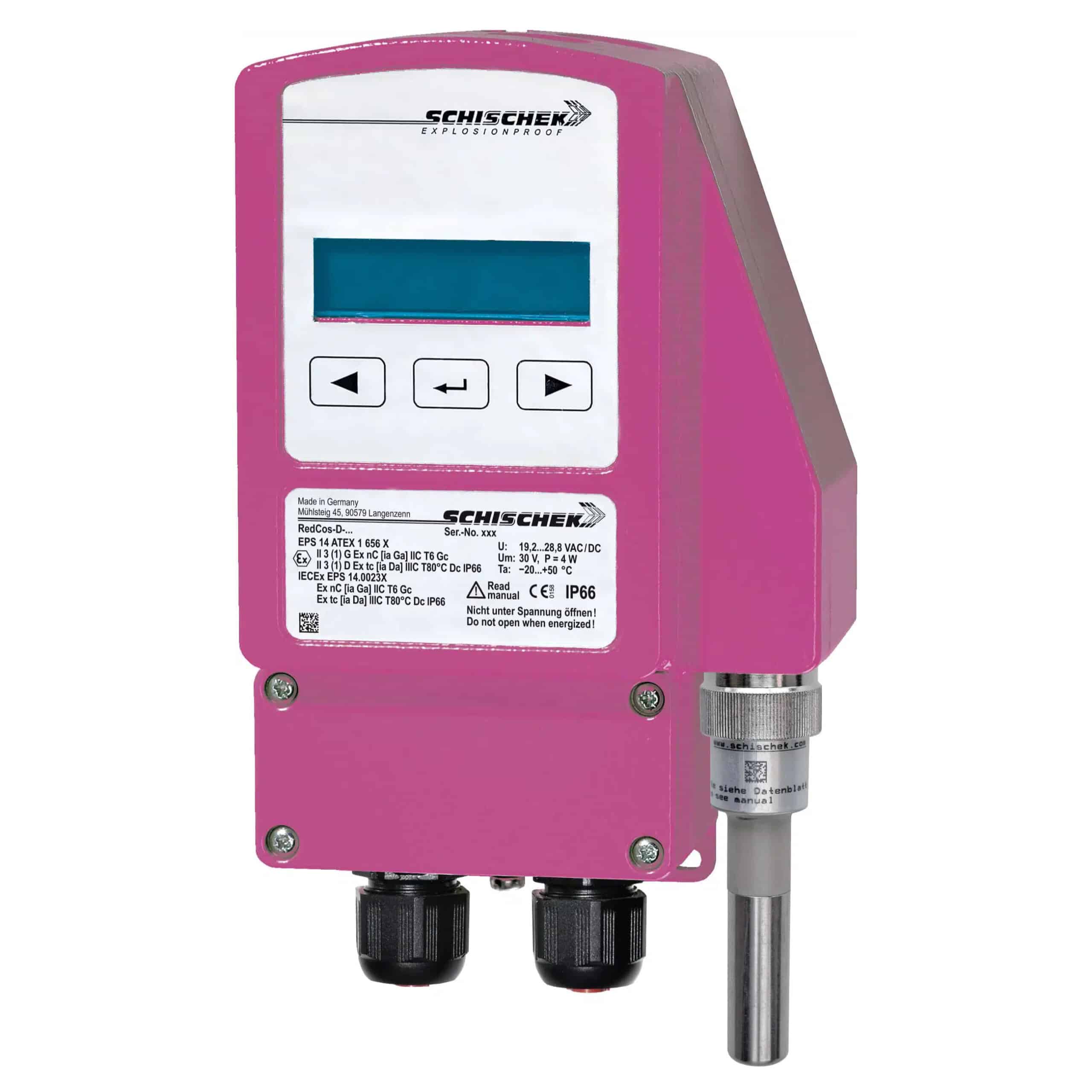

Temperature and/or humidity transmitter RedCos-D.. for hazardous locations
ATEX 2014/34/EU | Explosion-proof | Zone 2, 22
Combination with ExPro-C .. sensors
The RedCos-D transmitter with directly connected ExPro-C. sensors is a revolution for measuring temperature and/or humidity in HVAC systems, in chemical, pharmaceutical, industrial and offshore/on-shore installations, for use in explosive atmospheres Zone 2 (gas) and Zone 22 (dust Highest Protection class (ATEX) and IP66 protection, small dimensions, universal features and technical data guarantee safe operation, even under difficult environmental conditions.
All sensors are field-programmable without additional tools. The measurement ranges are scalable within the maximum ranges. The analog output signal is 0…10 VDC or (0)4. 20 mA and can be selected on site. The integrated display (can be switched off as required) is for parameterization and display of the actual value in operating mode.
Description
- Analog electrical transmitter RedCos-D for measurements of temperature and/or humidity in combination with ExPro-C.. sensors in HVAC systems, for installation in explosive locations Zone 2, 22
- Connector for ExPro-C.. sensors for room or duct installation
- No additional Module required in the panel
- No intrinsically safe wiring required
- All parameters adjustable on site without additional tools or measuring equipment
- Integrated display of the actual value, illuminated, switchable off
- Integrated Ex-e terminal box
- Robust aluminum housing with IP66 protection class
- Optionally available in stainless steel or with offshore/marine Coating
Technical data RedCos-D
| Measurement range temperature * | -40 ° C … + 125 ° C |
| Measurement range Humidity * | 0 … 100% RH |
| Application | Room and / or duct measurement |
| Power Supply | 24 VAC / DC |
| Connectable sensors | 1 × ExPro-C .. sensor |
| Output | 0-10 V DC, (0) 4-20 mA, selectable on site |
| Display | Backlight |
| Material protection / housing | IP66 / cast aluminum, coated |
| Ambient temperature / humidity | -20 ° … + 50 ° C, 0 … 95% rH |
| Power Supply | Via integrated terminal box |
| Measurements | L × W × H = 180 (CT = 187) × 107 × 66 mm |
| Dimensions stainless steel Type | L × W × H = 215 × 125 × 68 mm |
| Weight | ~ 1 kg / VA ~ 2,3 kg / CT ~ 1,1 kg |
| Explosion-proof for | Gases, mists, vapors, dust |
| Installation area of the Module | Zone 1, 2, 21, 22 |
| Certification | ATEX, IECEx, EAC, KOSHA |
| * depending on sensor Type |
RedCos-D | for ExPro sensors | Zone 2, 22
| Type | Description | Data sheet RedCos-D | Data sheet ExPro-C sensor | Certificate | Declaration of Conformity |
| RedCos-D | EX temperature and humidity transmitter for ExPro-C .. sensors |  | | | |
Scope of delivery – RedCos-D
1 × analog Module RedCos-D with integrated Ex-e terminal box
3 × self-tapping screw Ø 4,2 × 13 mm
Required accessory: ExPro-C .. sensor
Special models – RedCos-D-A
Module with two intrinsically safe 4..20 mA outputs for external connection of Ex-i actual value indicator (output 1 for °C, output 2 for % RH)
Special model in stainless steel – RedCos-D-VA
Stainless steel housing similar to AISI 316, some parts nickel-plated
Special model painted (coated) – RedCos-D -…- CT
Aluminum housing offshore / marine coated, seawater resistant, cable glands nickel-plated, screws in stainless steel
Accessories – RedCos-D
- ExPro-C .. sensors
- Intrinsic, external LCD indicator that can be connected to RedCos-D-A transmitter, installation in hazardous locations Zone 2, 22
- Mounting bracket for round air ducts up to Ø 600 mm
- Sensor extension cable 3 m
- M16 standard cable glands in nickel-plated brass
- M20 Ex-d cable glands in nickel-plated brass for armored cables
- (Offshore applications)
Heating system ExPolar for use with ExCos sensors at low temperatures down to −40 ° C
