Description

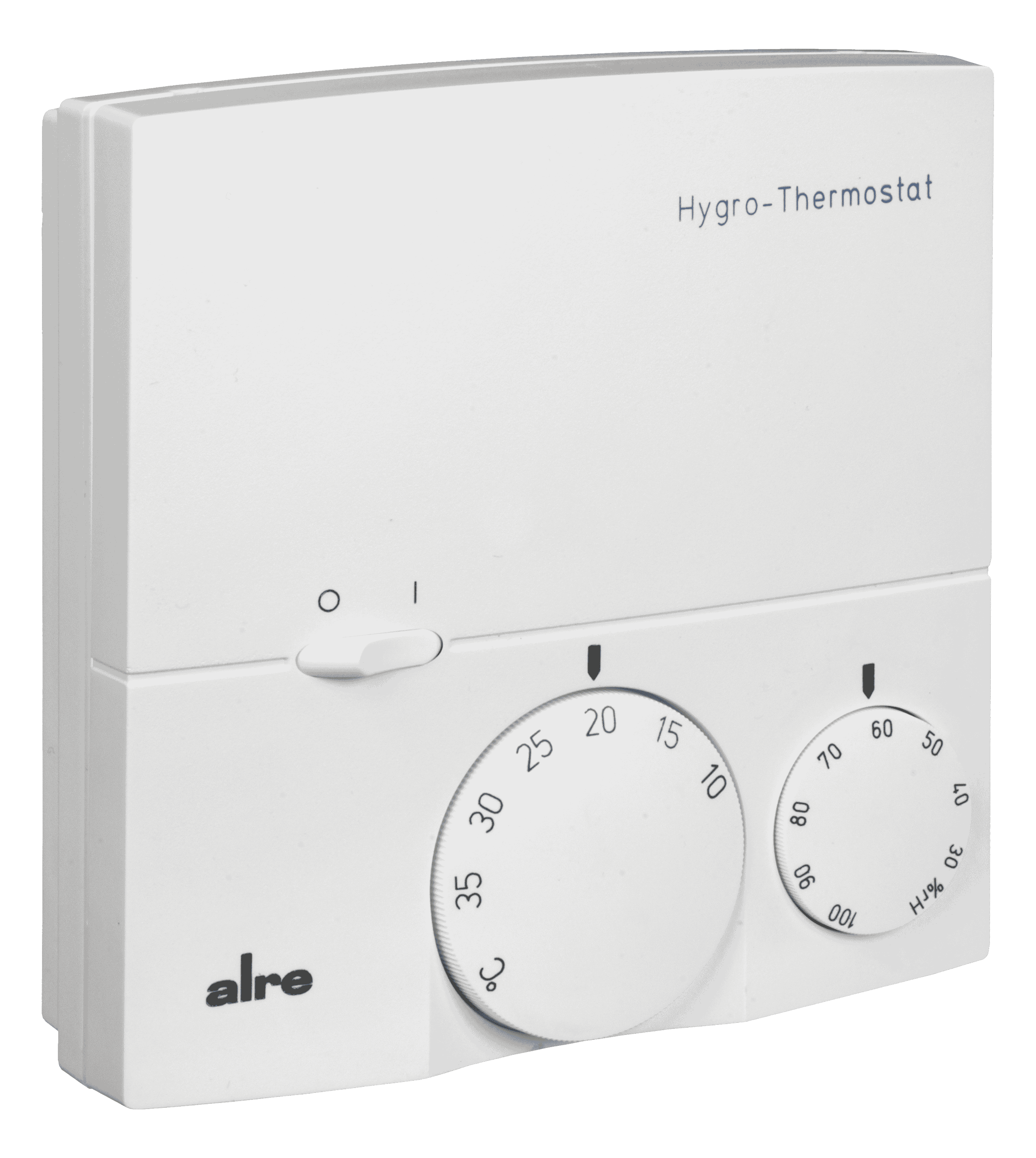

Room hygrostat, surface-mounted, 24V AC or 230V AC, 10…35…°C, 30…100% rH, 2-way contact
Hygrothermostat for simultaneous control or monitoring of temperature and humidity in offices, homes and hotels, as well as swimming pools, greenhouses and residential baths, and suitable for all types of heating. The device can be used with 24 V~ or 230 V~ as required. For electric underfloor heating, ensure that the heating output cannot overheat the screed, even during continuous operation. In the case of hot-water heating systems, a maximum of 10 valves (closed when de-energized) must be connected to the heating output, or a maximum of 5 valves (open when de-energized) to the cooling output. For cooling, a maximum of 5 valves (closed when de-energized) must be connected to the cooling output, or a maximum of 10 valves (open when de-energized) to the heating output. Where necessary, thermal protection devices may also need to be installed. Maximum switching current: Dehumidifying (terminal 9) 5 (0.2) A, humidifying (terminal 8) 3 (0.2) A, heating (terminal 1) 10 (4) A at 230 V AC / 1 (1) A at 24 V AC, cooling (terminal 2) 5 (2) A at 230 V AC / 1 (1) A at 24 V AC, switching capacity: terminal 9: 1150 W, terminal 8: 690 W, terminal 1: 2300 W at 230 V AC / 24 W at 24 V AC, terminal 2: 1150 W at 230 V AC / 230 W at 24 V AC
