In Djadun’s product range, you will find both electronic thermostats and modulating temperature controllers with proportional control behavior. The operation and application areas of the two versions differ in essential respects.
Electronic thermostats
These are devices that operate according to the on/off principle, i.e. switching. They are also referred to as temperature switches or thermal switches and are primarily used to switch electric heaters, fans, valves, and open/close actuators. Djadun thermostats are available for surface or wall mounting, with an integrated room Sensor or for external Sensor connection, and optionally with an integrated digital display.
Temperature controller, analog
Devices with a modulating, often 0…10V, output signal. Djadun controllers feature proportional control behavior and are primarily used to control modulating actuators on ventilation dampers, VAV controllers, and valves. Other areas of application include:
- Speed control of fans with EC motors
- Power control of electronically controllable electric air heaters
Djadun controllers are available in various versions – with an integrated room Sensor or for external Sensor connection, for public access with an internal setting scale, and much more…
The following designs are available:
- For installation in front panels or control panels – our temperature controller control panel installation / front mounting
- For surface mounting or wall mounting in IP54 versions – our temperature controller wall mounting / surface mounting
- As a compact duct controller – our temperature controller duct mounting
- For DIN rail mounting or mounting rail installation – our temperature controller DIN rail mounting
- As stylish room temperature controllers or room controllers – our room temperature controllers, room controllers
Thermostats TW-E and TW-E-D
Our thermostats for switching fans, electric heaters, and open/close actuators for surface or wall mounting. With their robust housing with IP54 protection class and dimensions of 125 x 85 mm, they are ideal for commercial buildings, compressor rooms, or rooms with harsh ambient conditions.
TW-E are electronic thermostats (switching controllers) with a switching output 1 x EPU. They are available with an internal temperature Sensor or for use with external sensors. The supply voltage is 230 VAC.

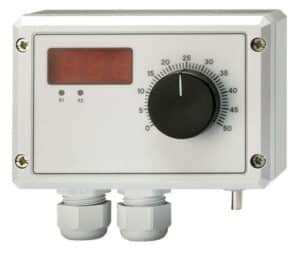

The TW-E-D thermostats also feature a digital display to show the actual temperature.
